LGDZF-6090/DZF-6210
OEM

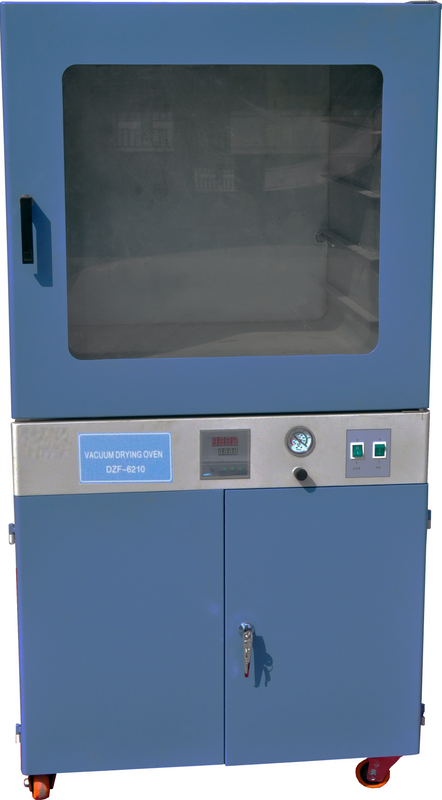

Vacuum Dry Oven (LGDZF-6090/DZF-6210) For Medical Use
Introduction
Microprocessor control,
With glass window door,
Digital display setting and actual temperature
Digital display running timer
PID self-tuning, over temperature alarm
Automatic alarm after operation
Suitable for drying, baking, dewaxing, sterilization, heat treatment under vacuum conditions
Parameters
| Model | DZF-6090 | DZF-6210 |
| Volume | 90L | 210L |
| Working size(mm) | 450x450x450 | 560x640x600 |
| Power | 1600W | 2160W |
| Vacuum pump | Yes | Yes |
| Temperature range | 50~250ºC | 50~250ºC |
| Temperature fluctuation | ±1% | ±1% |
| Vacuum degree | <133Pa | <133Pa |
| Timer | 0-999min | 0-999min |
| Voltage | 220V 50Hz | 220V 50Hz |
| Dimension(mm) | 610x670x1430 | 810x720x1590 |
| Package(mm) | 750x740x1580 | 890x840x1680 |
| G.W./N.W. | 163/117kg | 195/140kg |
