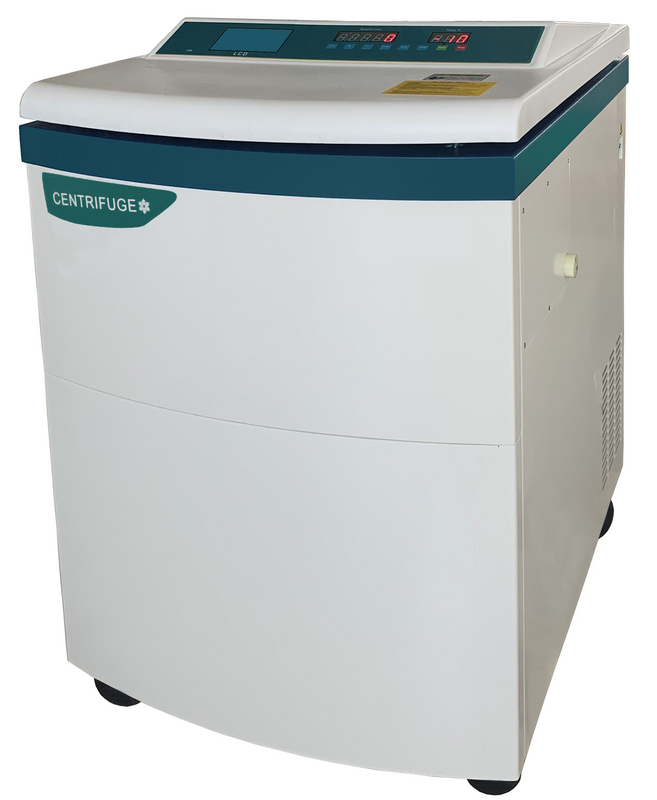

Low Speed Refrigerated Centrifuge (LG-LC-06F-V)

Low Speed Refrigerated Centrifuge (LG-LC-06F-V)
Introduction

• Brushless frequency motor for which in great torque, free maintenance, no powder pollution, quick in speed up and down.

• The flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.

• Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in     temperature control.

• There are more than kinds of rotors for your choice.

• Micro computer control system, LCD display the temperature,time and speed. There are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.

• Automatically electric lid lock, super speed,over temperature protection and imbalance protection.

• The centrifuge body is made of high-quality steel, safe and reliable

• Parameters

  Product Name	Low Speed Refrigerated Centrifuge
  Model	LC-06F-V
  Max speed	6000RPM
  Speed accuracy	±20r/min
  Max RCF	6880×g
  Timer	1~23h59min59s
  Max capacity	6×1000ml
  Temperature Range	-20ºC~+40ºC
  Temperature accuracy	±1ºC
  Power supply	220V 50HZ
  Dimension(mm)	900×740×1050mm
  Package(mm)	1070×850×1550mm
  G.W./N.W.	320/260KG



  Rotors :


  No	Rotors Type	Max speed r/min	Volume(ml)	Max RCF(g)
  Angle rotor
  1	Angle rotor	6000	6×500ml	6880
  2	Angle rotor		6×1000ml
  Swing rotor
  3	Swing rotor	4200	6×1000ml square	5900
  4	Swing rotor		6×1000ml round	5900
  5	Swing rotor		4-500 ml blood bags	5900
  6	Swing rotor		2-300 ml blood bags	5900




  Description	Rotor No.	Max speed  r/min	Rotor capacity	Max RCF (g)
  Optional swing rotor 1	S0480004	4000	800ml×4	3450xg
  Optional swing rotor 2	S0450004	4000	500ml×4	3380xg
  Optional swing rotor 3	S0430004	4000	300ml×4	2920xg
